Credentials

Overview

Credentials in Pupau are encrypted, secure storage for authentication information used by your agents, pipelines, and knowledge bases. Instead of hardcoding sensitive information, you can store credentials once and reference them across multiple tools and configurations.

The credentials system provides multiple types of authentication methods, scope-based access control, and token management for OAuth credentials. See Token Management for details on OAuth token refresh behavior.

Credential Types

Pupau supports four types of credentials for storing authentication information. Each credential type is designed for specific authentication scenarios and services.

Username and Password

Store traditional username/password combinations for database connections and email server authentication.

OAuth2 Token

Store OAuth2 tokens for cloud storage services. Visual indicators show when authentication expires and needs refresh.

API Key

Store API keys for authenticating with external services.

Connection String

Store connection credentials as a structured connection string containing server details and authentication information.

Quick Reference

Credential Type	Primary Use Case	Where Used	Data Format	Refreshable	Supported Services
Username/Password	Database & Email authentication	Database Tool, SMTP Tool, Database Pipeline Actors	Username + Password	No	PostgreSQL, MySQL, MSSQL (SQL Server), SMTP servers
OAuth2 Token	Cloud storage access	Knowledge Bases (Google Drive, OneDrive)	OAuth tokens	Yes (Google Drive only)	Google Drive (auto-refresh), OneDrive (manual refresh)
API Key	P.A.N.D.A Tool authentication	P.A.N.D.A Tool	API key string	No	P.A.N.D.A tools
Connection String	Server access	Knowledge Bases (FTP servers)	Host + Port + Username + Password	No	FTP servers for knowledge base data sources

Encryption Scopes

Credentials are encrypted with scope-based access control, determining who can access and decrypt the credential:

Personal vs Organization Scopes Comparison

Feature	Personal Scope (USER)	Organization Scope (COMPANY)
Access	Only the user who created it	All users in the company
Visibility	"Personal Credentials" tab	"Company Credentials" tab
Encryption	User-specific encryption key	Company-specific encryption key
Permissions	Any user can create	Requires company admin permissions
Use Case	Personal credentials, user-specific integrations	Shared company resources, team integrations
Examples	Personal Google Drive, personal OneDrive, personal API keys, personal database credentials	Shared Google Drive, shared OneDrive, company FTP server (knowledge base), shared database credentials
Ideal For	Individual user's Google Drive/OneDrive connections, personal tool configurations	Shared Google Drive/OneDrive accounts used by the team, company-wide knowledge base data sources

Note: Scope cannot be changed after credential creation. Choose carefully based on whether the credential should be personal or shared with your organization.

Security Features

Encryption

All credentials are encrypted at rest using industry-standard encryption methods. Each scope (Personal or Organization) uses separate encryption keys, ensuring that credentials are isolated and secure.

Data Protection

• Credential values are never exposed in the user interface or API responses
• Only metadata (label, type, scope) is visible - never the actual passwords, keys, or tokens

Token Management

OAuth credentials require token management to maintain access. The behavior differs by provider:

Google Drive:

• OAuth tokens automatically refresh when expired, ensuring continuous access without user intervention
• Automatic refresh happens in the background when the credential is used
• Manual refresh may still be required if the credential becomes invalid or if automatic refresh fails
• See Manual Refresh and Expired Credentials for instructions on manual refresh

OneDrive:

• Manual token refresh is required when tokens expire (automatic refresh is not currently supported)
• You'll see visual indicators when a OneDrive credential expires
• See Manual Refresh and Expired Credentials for step-by-step refresh instructions

Visual Indicators:

• Expired or invalid OAuth credentials are clearly marked with warning badges and indicators on the credentials page and credential detail page
• Status indicators help you identify which credentials need attention

Where Credentials Are Used

Credentials can be associated with different parts of your Pupau setup. The system tracks where each credential is used. See Credential Use Cases for details on how credential tracking works and how to view associations.

Knowledge Bases

Link credentials to data sources in your knowledge base. This is the most common use case for credentials.

Data Source	Credential Type	Authentication Method	Token Refresh
Google Drive	OAuth2 Token	OAuth flow (Google)	Automatic when expired1
OneDrive	OAuth2 Token	OAuth flow (Microsoft)	Manual refresh required1
FTP Servers	Connection String	Host, Port, Username, Password	Not applicable

¹ See Token Management for detailed refresh behavior and requirements.

How it works: When adding a knowledge base data source, you'll be prompted to select or create a credential. For Google Drive and OneDrive, you can authenticate directly through OAuth flows. For FTP servers, you'll create a connection string credential. See Common Use Cases for step-by-step setup instructions.

Credential association:

• The credential is linked to the knowledge base data source that requires authentication
• The credential is also associated with the agent that uses the knowledge base

Agent Tools

Link credentials to specific tools used by your AI assistants.

Tool	Credential Type	Use Case	Supported Services
Database Tool	Username/Password	Connect to databases	PostgreSQL, MySQL, MSSQL (SQL Server)
SMTP Tool	Username/Password	Authenticate with email servers for sending emails	SMTP servers
Google Drive Tool	OAuth2 Token	Connect to Google Drive folders and files. Supports inflow authentication	Google Drive (auto-refresh)
P.A.N.D.A Tool	API Key	Authenticate with P.A.N.D.A tools	P.A.N.D.A tools

How it works: When configuring certain tools that require authentication, you can select an existing credential or create a new one. The credential is then used by the tool when making authenticated requests.

Credential association:

• The credential is linked to the agent that uses the tool
• The credential is also associated with the specific tool that requires authentication

Note: Custom API call tools currently do not support credential integration.

Inflow Authentication

Inflow authentication allows users to authenticate on-demand when using a tool, rather than requiring credentials to be set up during configuration. Currently, this feature is only available for the Google Drive Tool.

How it works:

• When inflow authentication is enabled, users don't need to select or create credentials during tool configuration
• Instead, authentication happens automatically when the tool is first used during a chat conversation
• Each user authenticates with their own Google account, creating a personal credential that's automatically linked to their account
• The credential is then available for all future conversations with that assistant

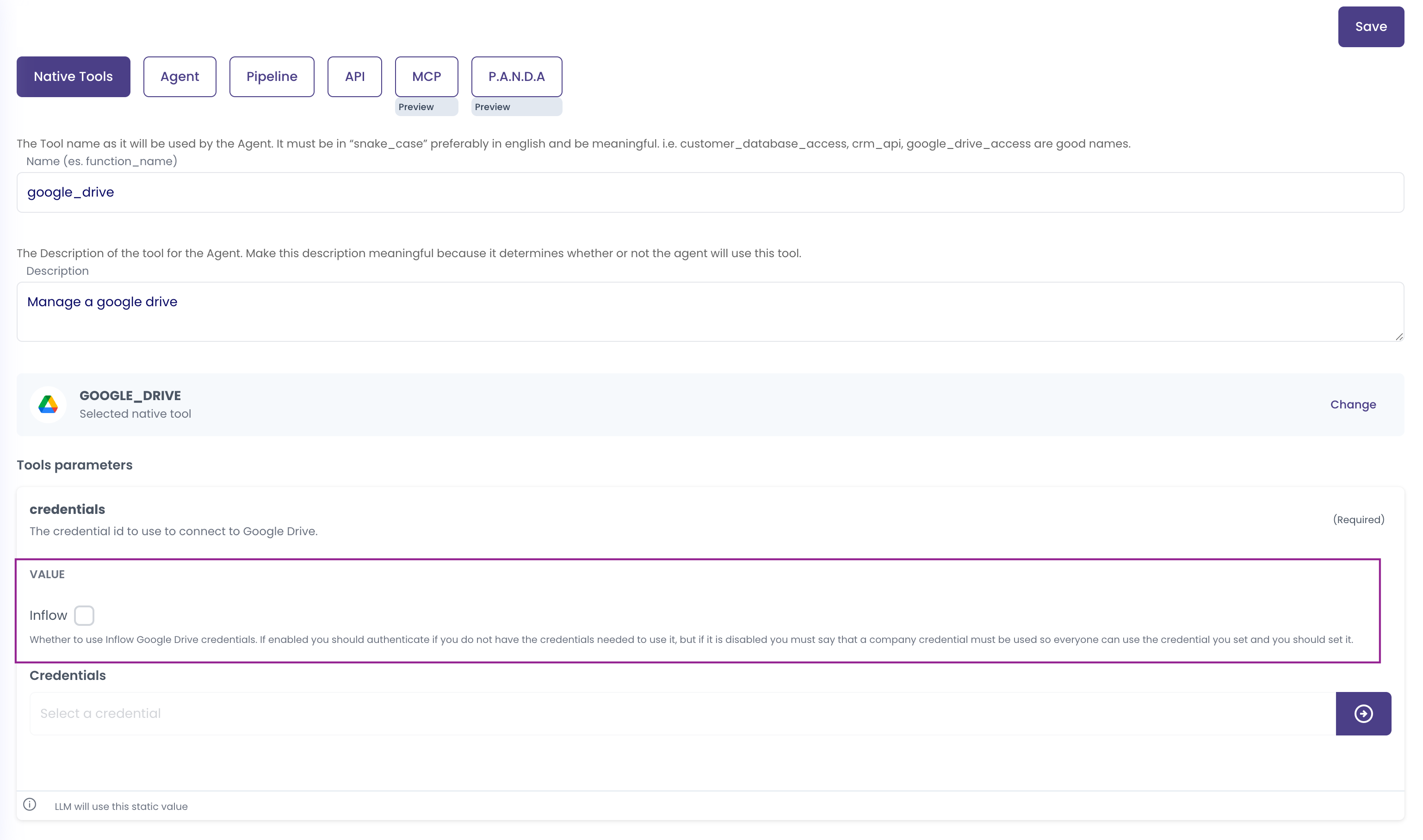

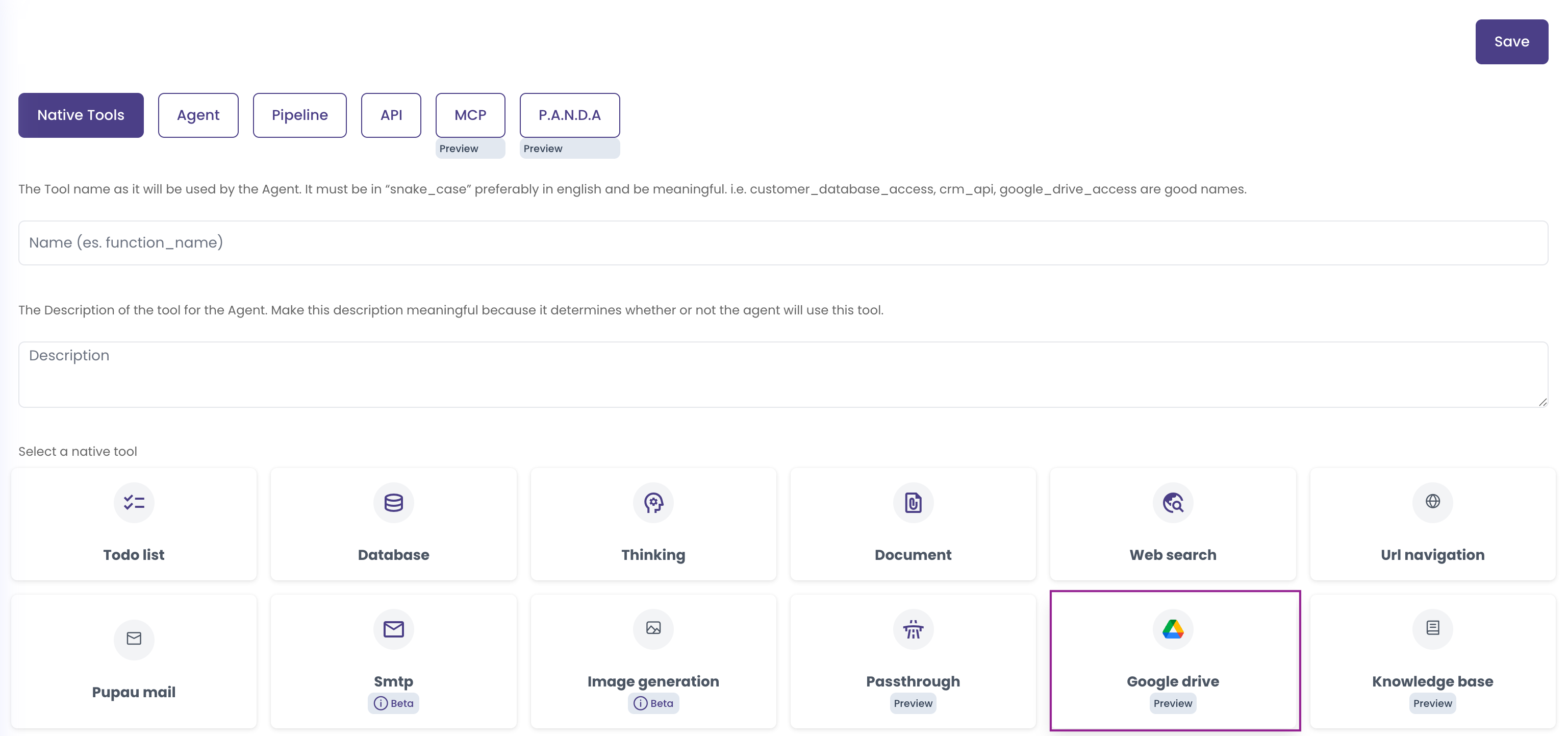

Configuring the Tool

1. Select your assistant and navigate to its configuration page
2. Go to Tool Use (tool usage configuration)
3. Select the Google Drive Tool (currently the only tool that supports inflow authentication)
4. Locate the credentials option in the tool configuration

5. Choose your authentication method:
   • Without inflow authentication: You must select an existing Google credential (created previously, e.g., for Knowledge Base) or create a new one on the spot

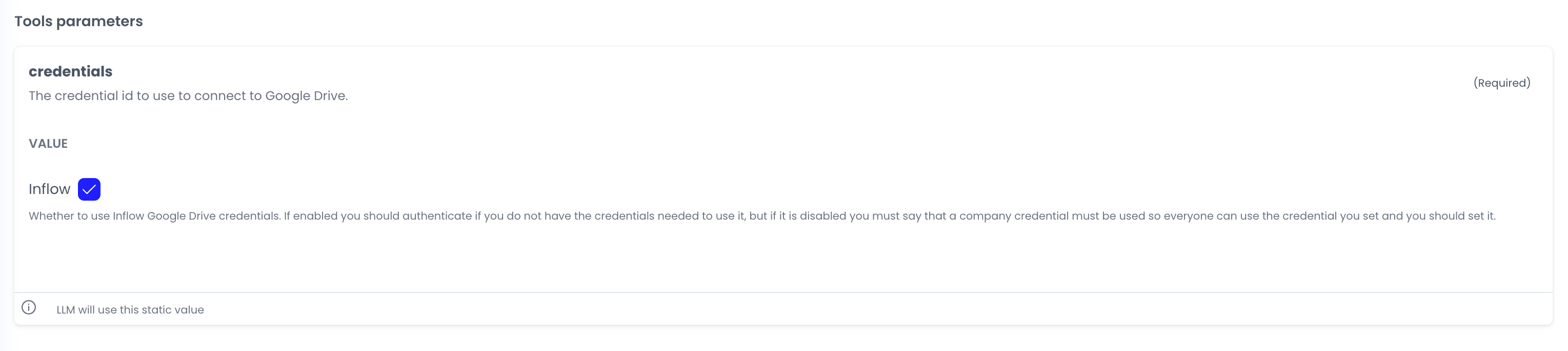

• With inflow authentication: Check the inflow authentication option

6. When inflow authentication is enabled, the credential selection field becomes disabled, indicating that authentication will happen on-demand
7. Save the tool configuration - it's now ready to use!

Using the Tool with Inflow Authentication

Once the tool is configured with inflow authentication enabled, users can simply chat with the assistant and request actions that require the Google Drive tool.

1. Start a conversation with the assistant and request an action that uses Google Drive (e.g., "List files in my Google Drive" or "Read a document from Google Drive")

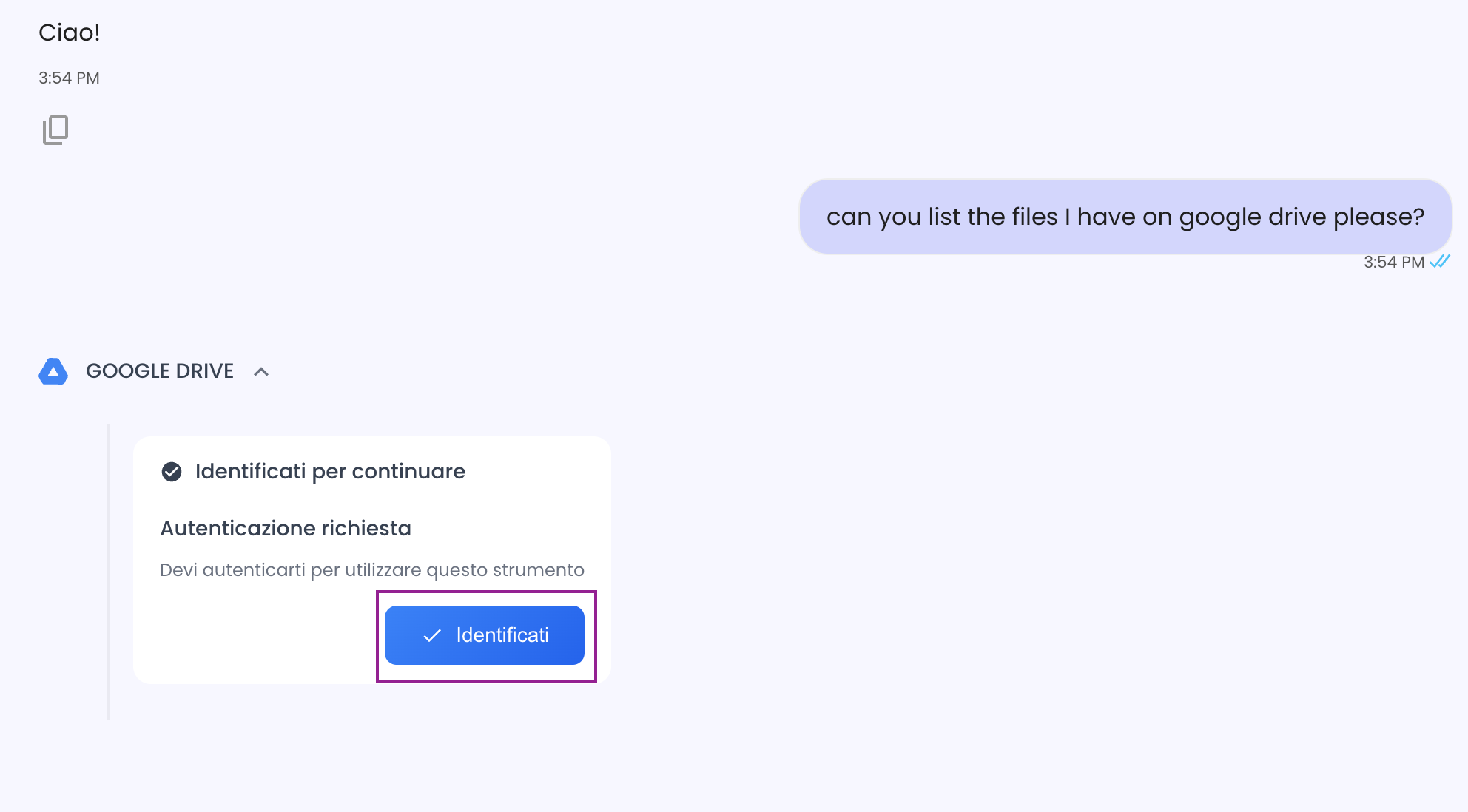

2. The assistant will prompt you to authenticate with Google (the identity provider)

3. Complete the OAuth authentication flow by selecting your Google account and granting the necessary permissions

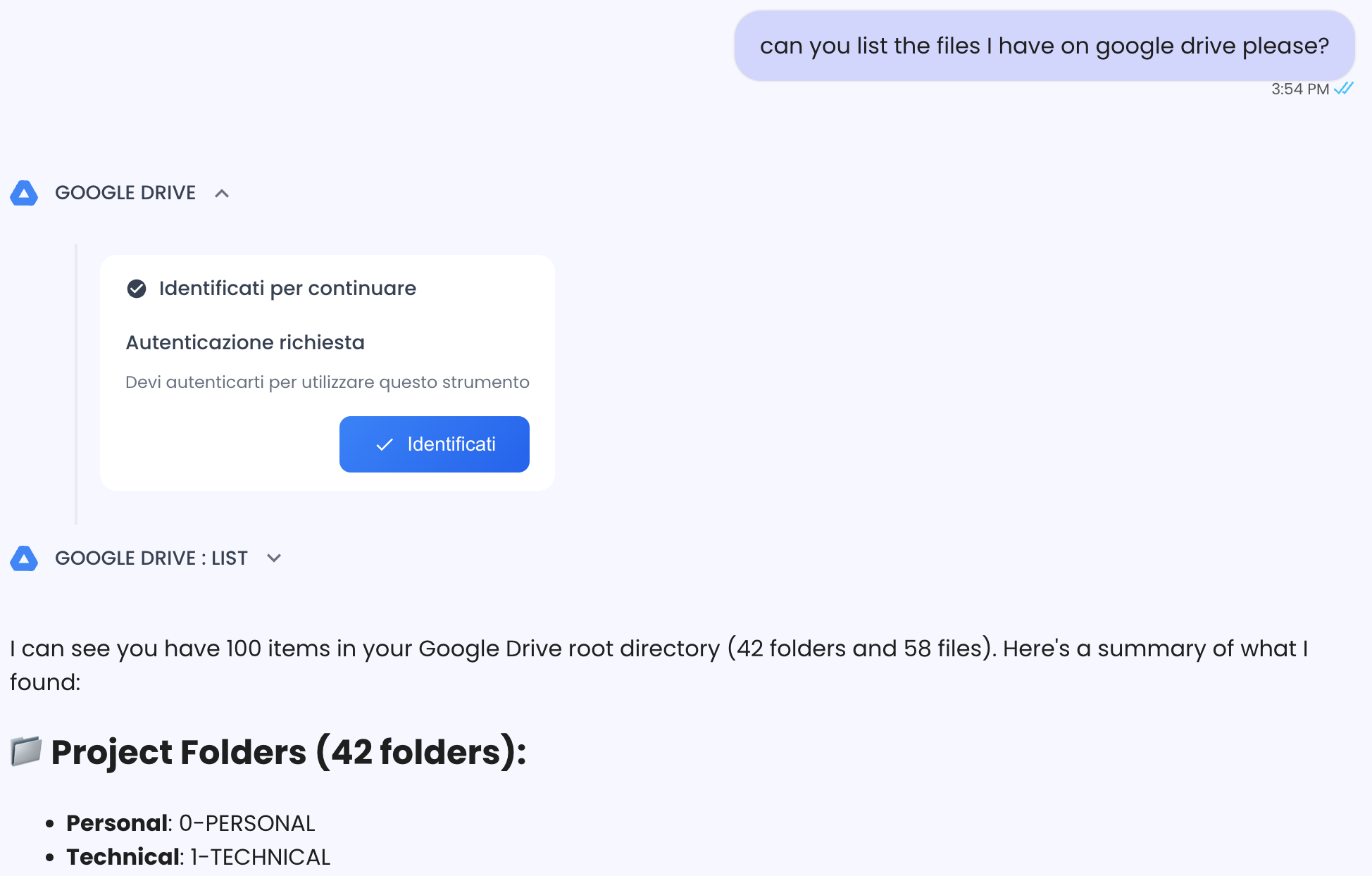

4. After authentication completes, the conversation automatically resumes and the assistant uses the newly created credential to fulfill your request

5. The credential is now stored and linked to your account, so you won't need to authenticate again for future conversations with this assistant

Benefits:

• No need to pre-configure credentials during tool setup
• Each user authenticates with their own Google account
• Credentials are created automatically when needed
• Seamless user experience - authentication happens naturally during conversation

Pipeline Actors

Link credentials to actors used within pipelines.

Pipeline Actor	Credential Type	Use Case	Supported Services
Database Actor	Username/Password	Connect to databases within pipelines	PostgreSQL, MySQL, MSSQL (SQL Server)
Google Drive Actor	OAuth2 Token	Connect to Google Drive folders and files within pipelines	Google Drive (auto-refresh)

How it works: When configuring a pipeline actor that requires authentication, you can select a credential that will be used when the pipeline executes that specific tool.

Credential association:

• The credential is linked to the pipeline that contains the tool
• The credential is also associated with the specific actor (tool) within the pipeline configuration

Note: SMTP pipeline actors do not currently support credential integration.

Managing Credentials

Creating Credentials

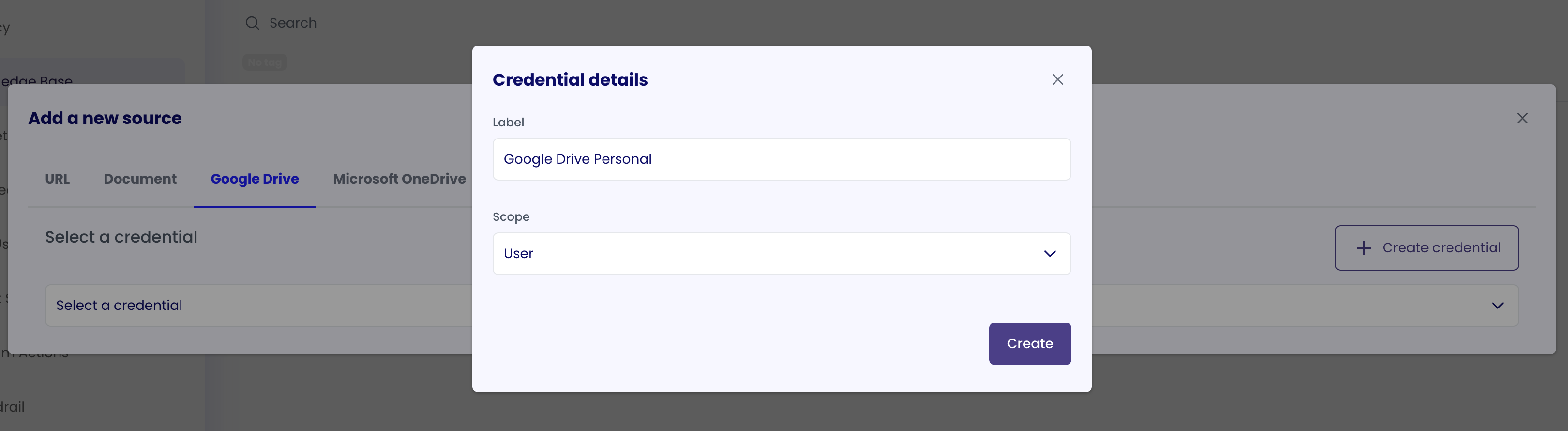

Credentials are not created directly from the credentials page. Instead, they are created in one of two ways:

1. Through Configuration Modules in Specific Tools:

   • When configuring tools or data sources that require authentication, credential creation forms are available within the tool configuration interface
   • For example, when adding an FTP data source for knowledge base, you'll create a connection string credential as part of the setup
   • When configuring the Database tool, you'll create a username/password credential during configuration
   • When configuring the P.A.N.D.A tool, you'll create an API key credential during configuration
   • When configuring the SMTP tool, you'll create a username/password credential during configuration

2. Through Inflow Authentication (On-Demand):

   • Currently available for Google Drive tool only
   • Credentials are created on-demand when the tool is actually used during chat conversations
   • See Inflow Authentication for detailed setup and usage instructions

Note:

• The credentials page shows all your credentials but is primarily for viewing, editing labels, and managing existing credentials
• You cannot create credentials directly from the credentials page - they must be created through tool configuration modules or inflow authentication flows
• For OAuth token refresh information, see Token Management

Viewing Credentials

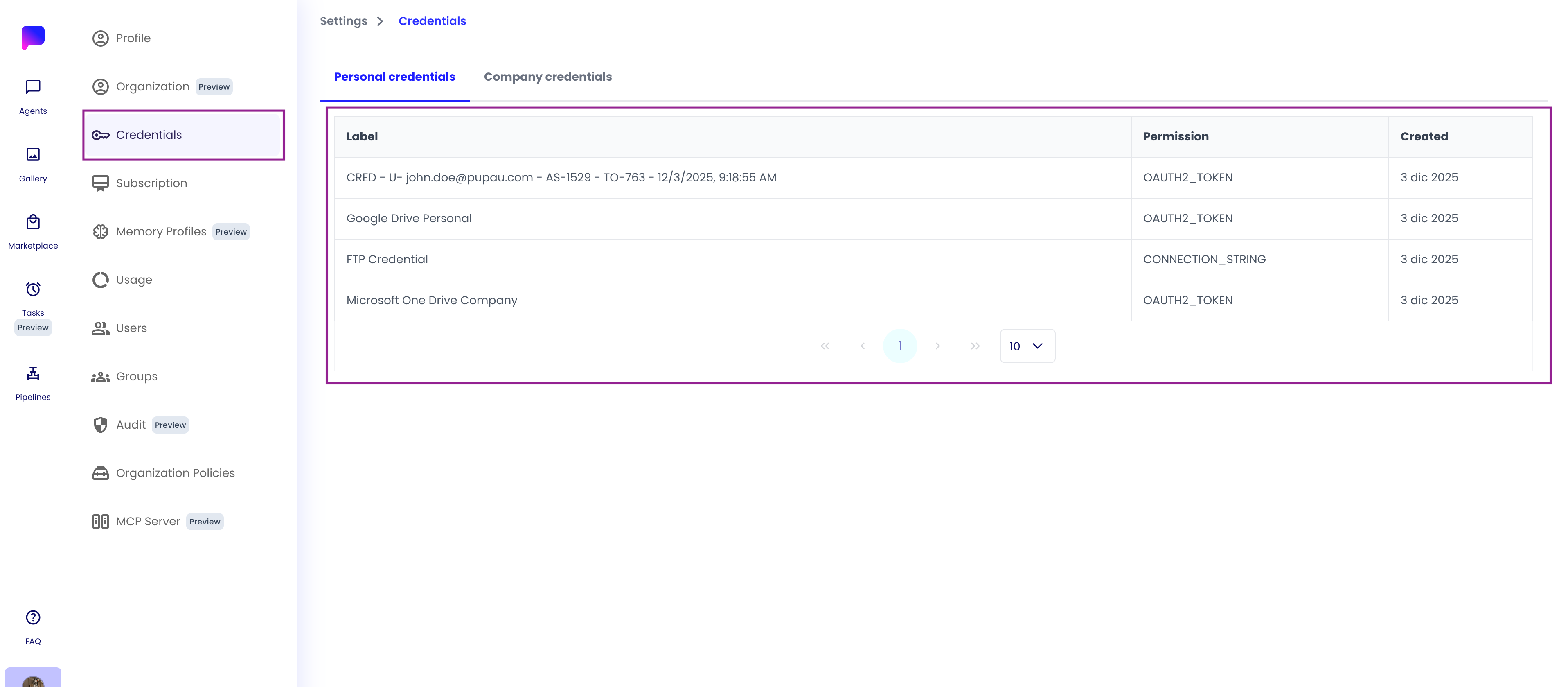

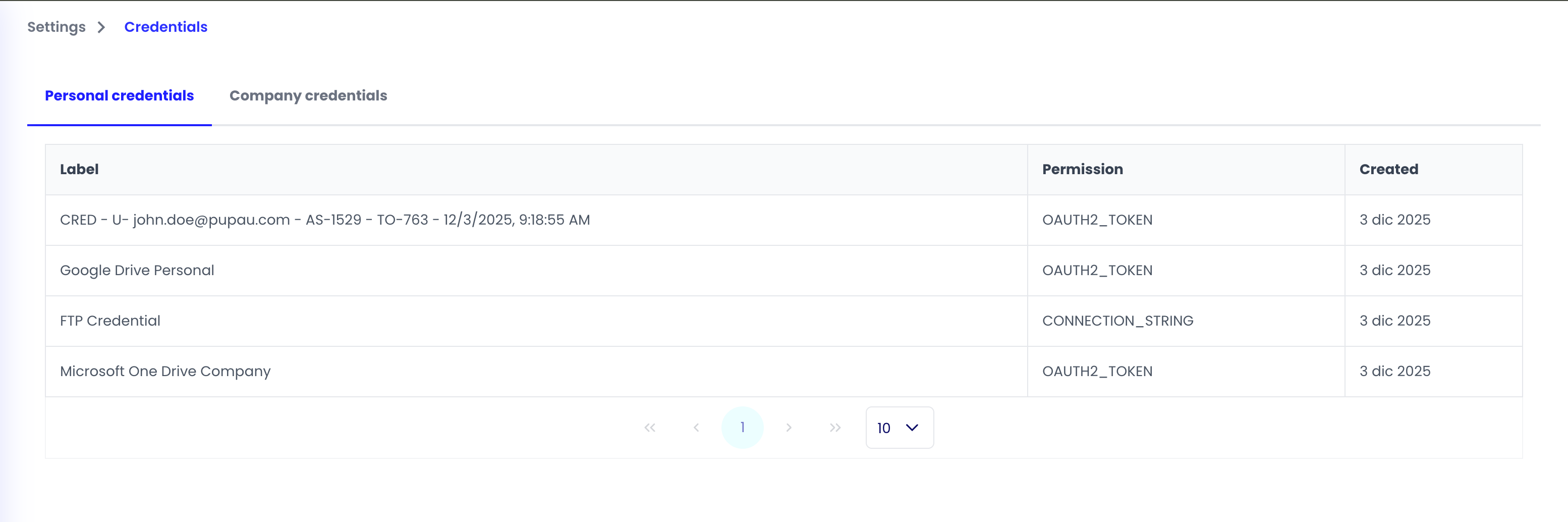

The credentials page (accessible from Account → Credentials) shows all your credentials organized by scope (Personal Credentials or Company Credentials). This page is primarily for viewing and managing existing credentials. When viewing a credential:

• Sensitive data is never exposed: Credential values (passwords, API keys, tokens) cannot be accessed after securely stored
• Metadata displayed: Label, type, scope, provider (for OAuth), refreshable status, expiration date
• Use cases: See exactly where the credential is being used (knowledge bases, agent tools, pipeline tools). See Credential Use Cases for comprehensive information on credential tracking
• Status indicators: Invalid or expired OAuth credentials show a warning and refresh button
• Quick navigation: Click on any use case to navigate directly to that configuration

Updating Credentials

• Label: You can edit the label directly from the credential detail page for better organization
• OAuth Tokens: See Token Management for detailed information on token refresh behavior for Google Drive and OneDrive credentials
• Other types: For username/password, API keys, and connection strings, you cannot update the credential data. Create a new credential and update references in your tools or knowledge bases

Manual Refresh and Expired Credentials

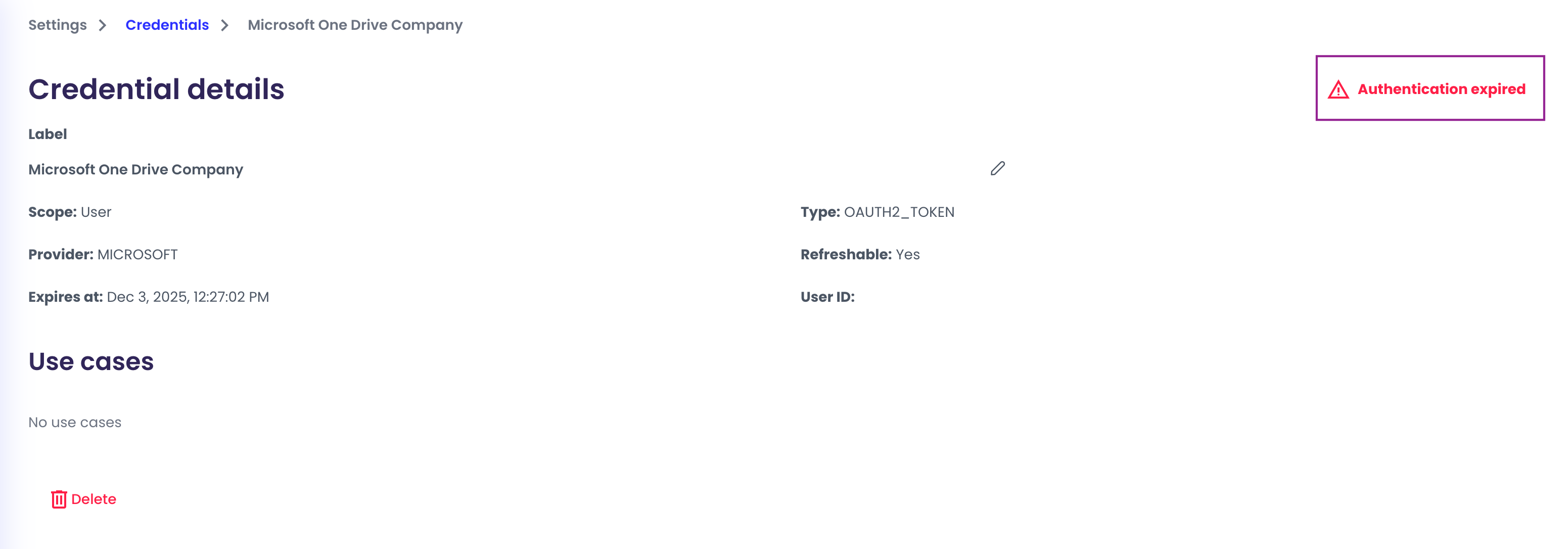

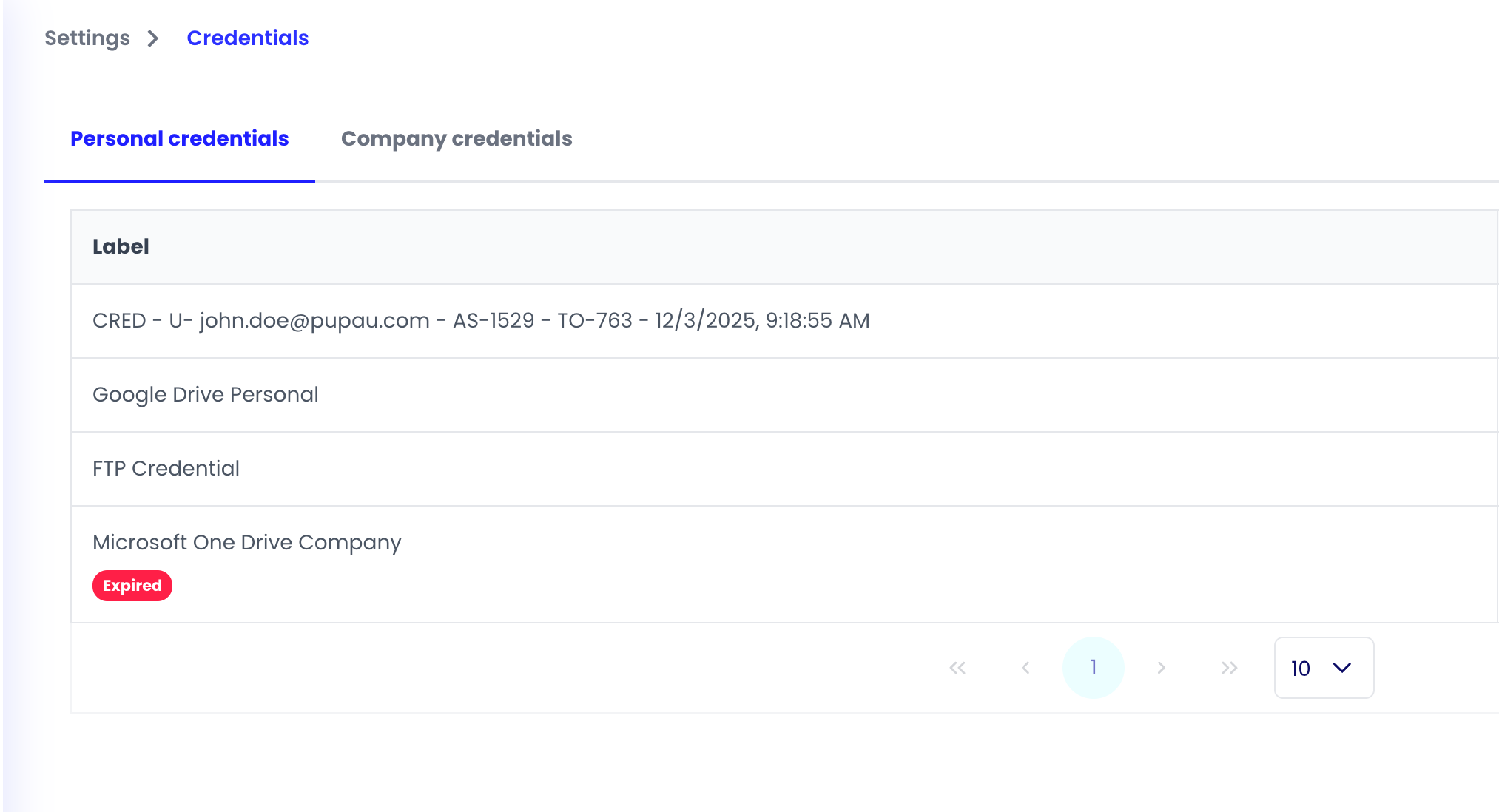

When an OAuth credential expires, you'll see a visual indicator on the credentials page and the credential detail page. Here's how to manually refresh an expired credential:

1. Navigate to the credential: Go to the credentials page (Account → Credentials) and locate the expired credential. Expired credentials are marked with an "Expired" badge or warning indicator.

2. Open the credential detail page: Click on the expired credential to view its details.

3. Click the authentication expired warning: On the credential detail page, you'll see a warning message indicating that authentication has expired. Click on this warning or the refresh button.

4. OAuth refresh popup: A popup will automatically open, prompting you to re-authenticate with the provider (Google or Microsoft).

5. Select your account: The refresh process does not automatically guarantee that you'll be logged in with the same account. You should choose which Microsoft or Google account you want to use for the renewal. Select the account you want to associate with this credential.

6. Complete authentication: Follow the OAuth flow to grant permissions and complete the authentication. Once successful, the credential will be updated with the new tokens.

Important notes:

• For general token refresh behavior, see Token Management
• Account selection: When refreshing, make sure to select the correct account (Google or Microsoft) that you want to use with this credential, as the system will not automatically use the previous account

Deleting Credentials

When deleting a credential:

• The system shows you all use cases (where the credential is used) before deletion - see Credential Use Cases for details on how tracking works
• Review the use cases to understand the impact
• All associated credential uses are automatically removed when you delete
• The credential is permanently deleted
• Warning: Deleting a credential will break any tools or knowledge bases that depend on it. Make sure to update those configurations first or be prepared to recreate the credential

Credential Use Cases

The system automatically tracks where each credential is being used across your Pupau setup. This tracking provides visibility into credential dependencies and helps you manage access effectively.

How Credential Tracking Works

When you create a credential and associate it with tools, knowledge bases, or pipeline actors, the system automatically records these associations. The tracking includes:

• Knowledge Bases: Which knowledge base data sources use the credential
• Agent Tools: Which tools in which assistants use the credential
• Pipeline Actors: Which pipeline actors use the credential

Viewing Credential Associations

You can view credential associations in two ways:

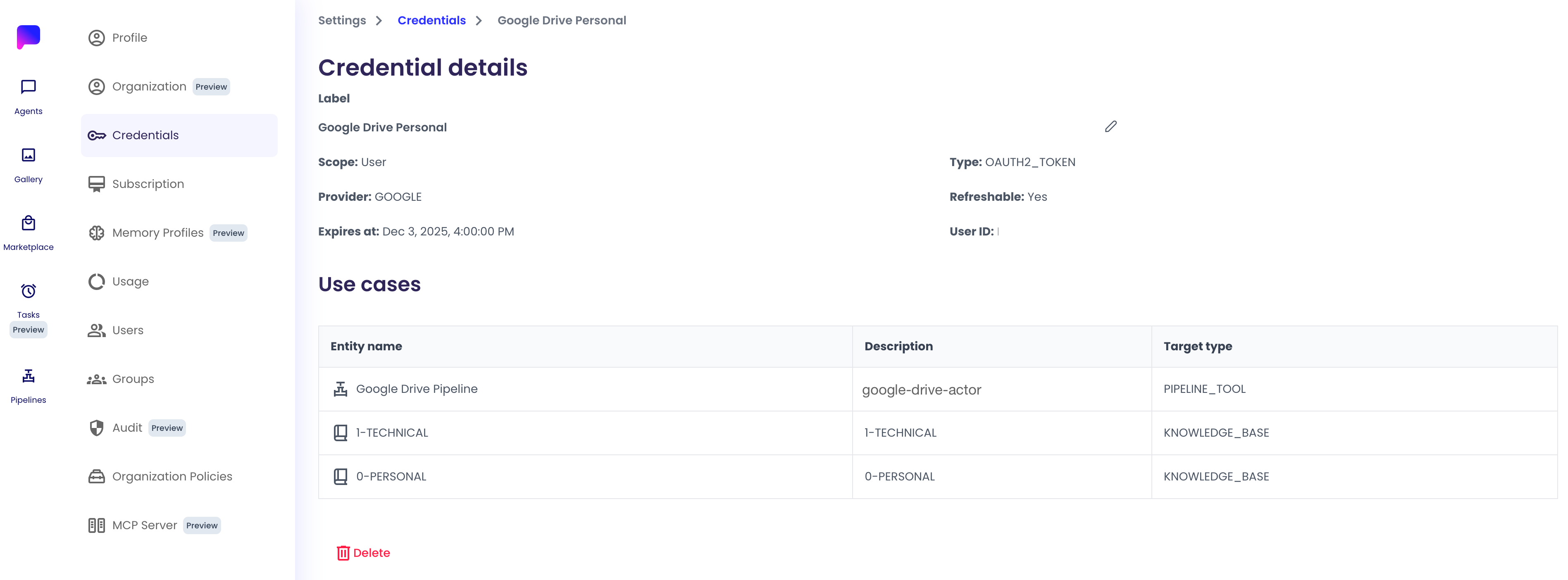

1. From the Credential Detail Page: When viewing a specific credential, you'll see a complete list of all use cases, including:

   • Knowledge bases that use the credential
   • Agent tools that use the credential
   • Pipeline tools that use the credential
   • Quick navigation links to each associated configuration

2. From Tool/Knowledge Base Configuration: When configuring tools or knowledge bases, you can see which credentials are already in use.

Using Credential Tracking

Credential use tracking helps you:

• View associations: See which agents, pipelines, or knowledge bases use a credential at a glance
• Manage dependencies: Understand the full impact before deleting credentials
• Audit access: Track credential usage across your organization for security and compliance
• Navigate quickly: Click on any use case to navigate directly to that configuration

Common Use Cases

This section provides step-by-step guides for setting up credentials for different tools and knowledge base data sources. Each guide includes detailed instructions, prerequisites, and credential-specific information. Guides are organized by credential type.

Username/Password Credentials

Use username/password credentials for database connections and email server authentication.

• Database Tool - Set up username/password credentials for PostgreSQL, MySQL, and MSSQL databases
• SMTP Tool - Configure username/password credentials for email server authentication

OAuth2 Token Credentials

Use OAuth2 token credentials for cloud storage services like Google Drive and OneDrive.

• Google Drive Knowledge Base - Set up Google Drive as a knowledge base data source using OAuth2 credentials
• OneDrive Knowledge Base - Set up OneDrive as a knowledge base data source using OAuth2 credentials
• Google Drive Tool with Inflow Authentication - Configure on-demand authentication for the Google Drive Tool

API Key Credentials

Use API key credentials for authenticating with external services that require API keys.

• P.A.N.D.A Tool - Set up API key credentials for P.A.N.D.A tool authentication

Connection String Credentials

Use connection string credentials for server access that requires host, port, username, and password information.

• FTP Server Knowledge Base - Set up FTP servers as a knowledge base data source using connection string credentials

Best Practices

Organization

• Use descriptive labels that indicate the service and purpose
• Group related credentials by scope (user vs company)
• Document credential purposes in the label or description

Security

• Choose scope carefully based on your needs - see Personal vs Organization Scopes Comparison for detailed guidance
• Use COMPANY scope for shared resources, USER scope for personal credentials
• Regularly review and rotate credentials, especially API keys
• Monitor credential expiration dates for OAuth tokens
• Delete unused credentials to reduce attack surface

OAuth Credentials

• Monitor credential expiration and refresh status
• Use provider-specific OAuth flows (Google/Microsoft) when available

Integration

• Credentials are automatically linked to tools or data sources when created through configuration flows
• Use credential use tracking to understand dependencies before deleting
• Test credentials after creation to ensure proper access

Next Steps

• Learn how to use an Assistant via API Key
• Learn how to use a Pipeline via API Key
• Explore Tool Use to see how credentials are used with tools
• Check Knowledge Base configuration for credential usage
